LPG Series High Speed Centrifugal Spray Dryer

The Category:Drying Machine
Introduce: LPG series high-speed centrifugal atomizing drier is a special equipment and is suitable for drying emulsion, suspending liquid, liquor and so on. Particularly, it has worked perfect to dry polymers and resins; dyestuff and pigment; ceramics, glass, derust agent; pesticide; carbohydrate, dairy products; detergent and surfactant; fertilizer, organic compound, inorganic compound and so on....

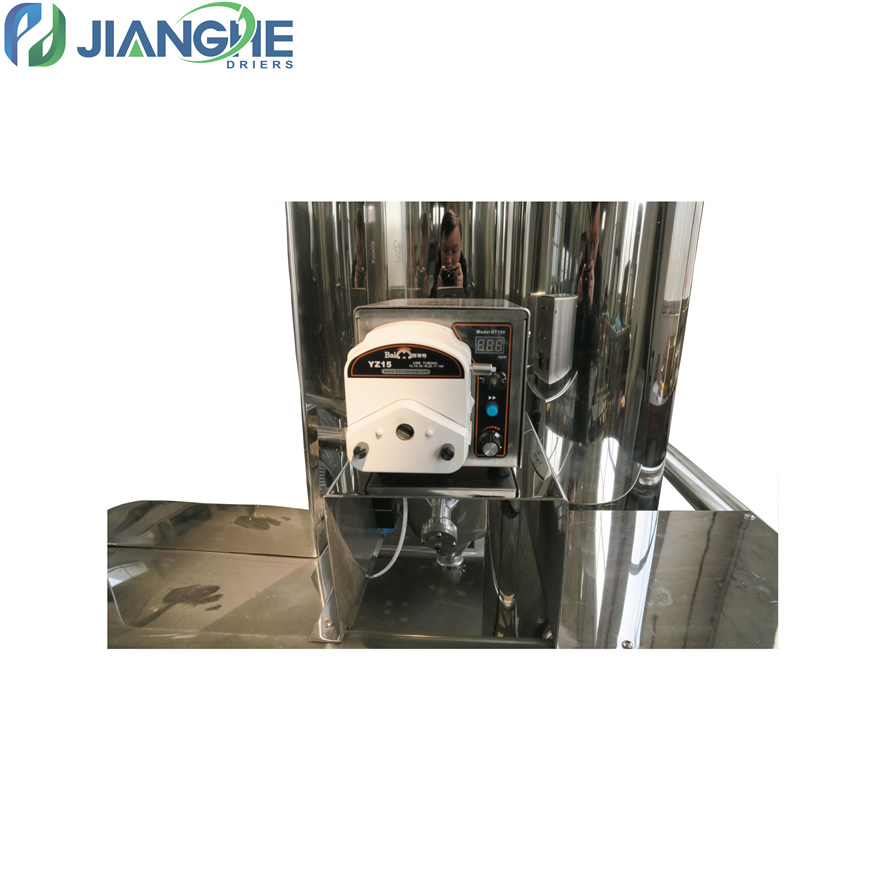

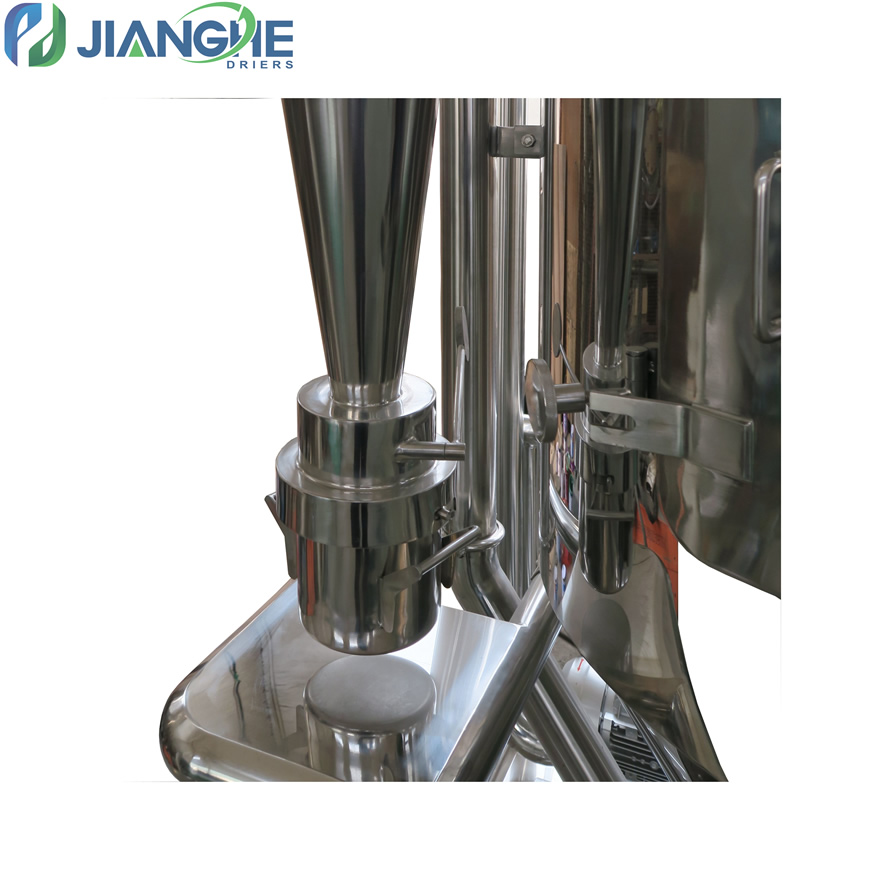

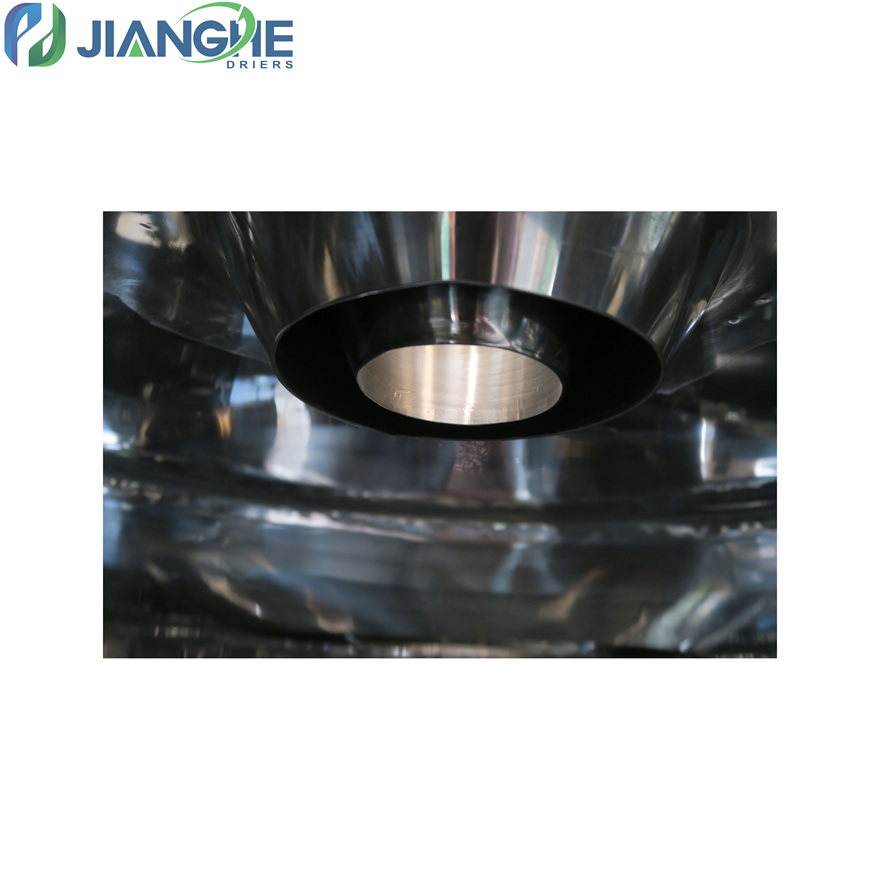

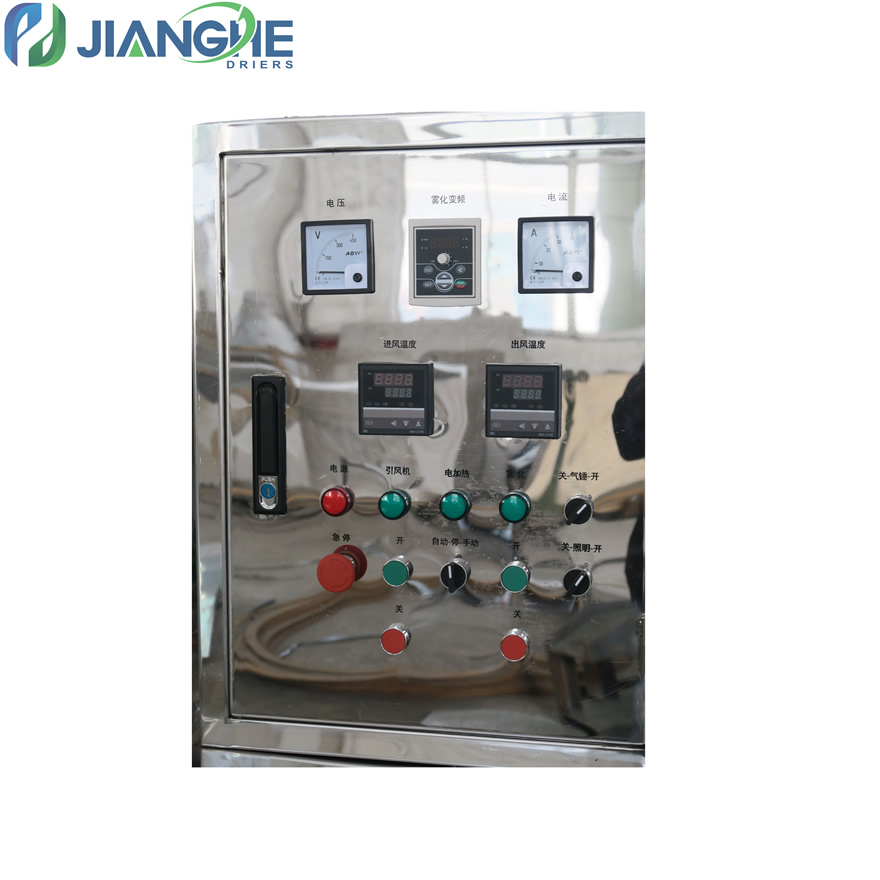

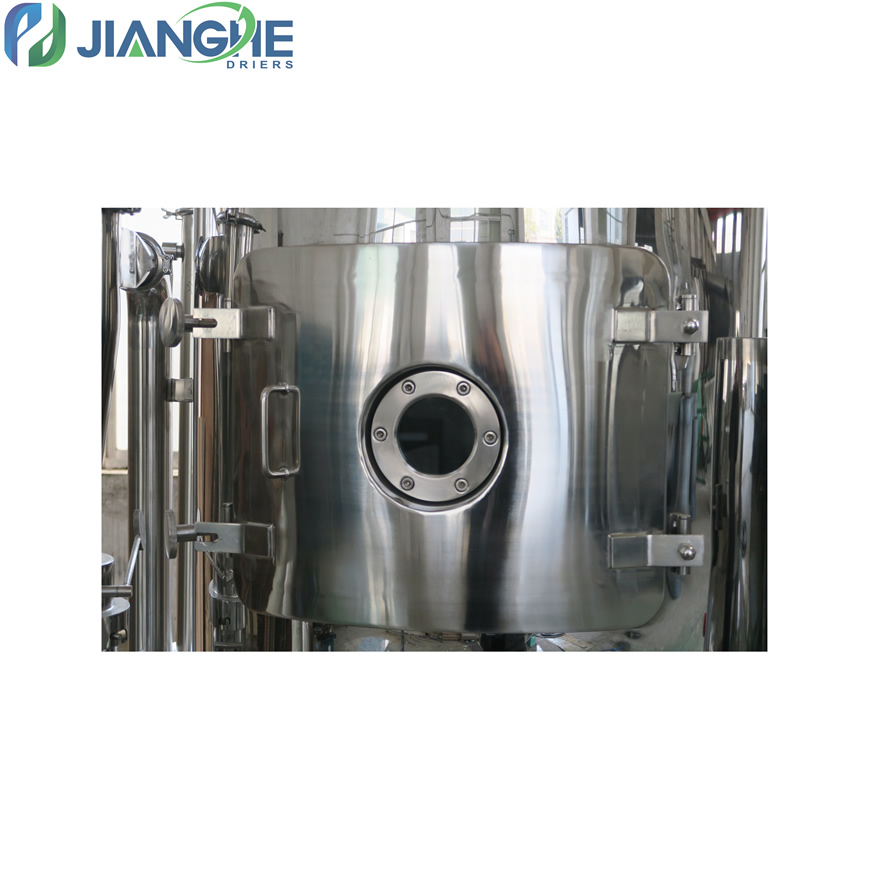

Details Photos

QQ20181019082839

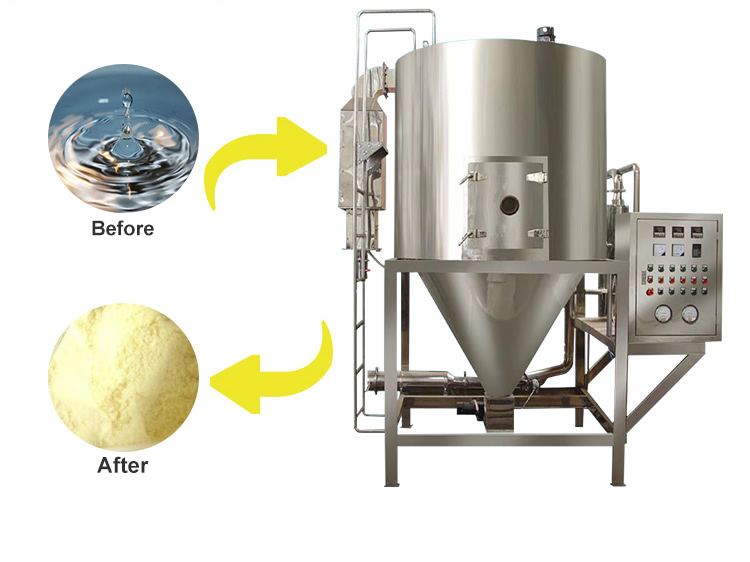

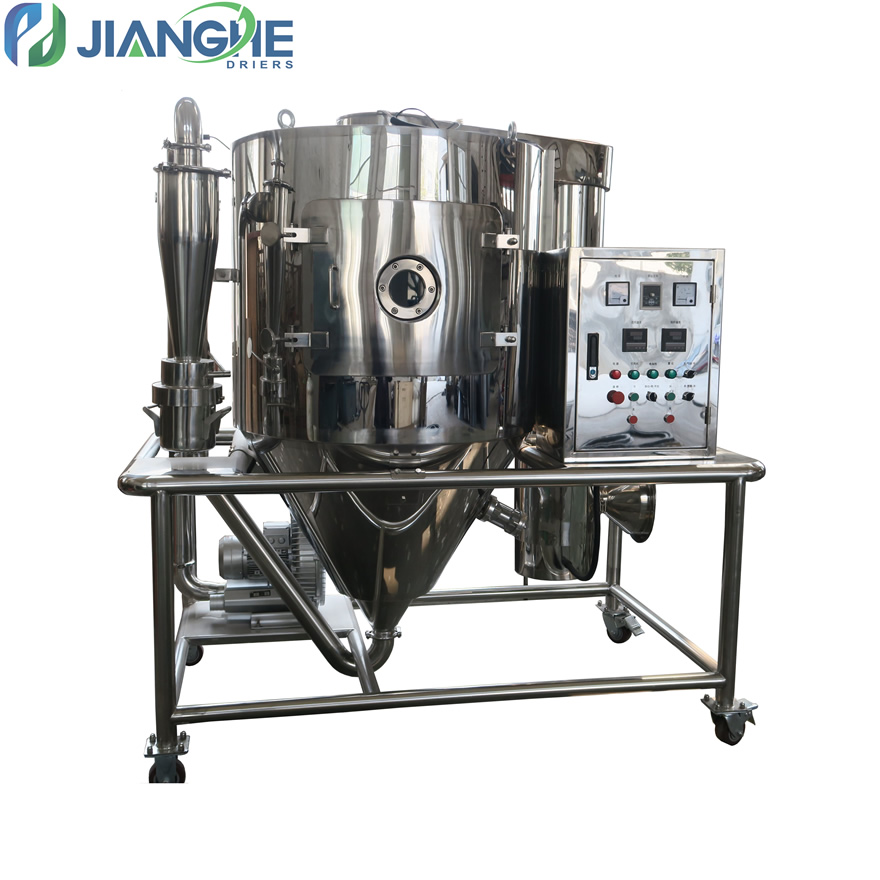

LPG series high-speed centrifugal atomizing drier is a special equipment and is suitable for drying emulsion, suspending liquid, liquor and so on. Particularly, it has worked perfect to dry polymers and resins; dyestuff and pigment; ceramics, glass, derust agent; pesticide; carbohydrate, dairy products; detergent and surfactant; fertilizer, organic compound, inorganic compound and so on.

QQ20181019083029

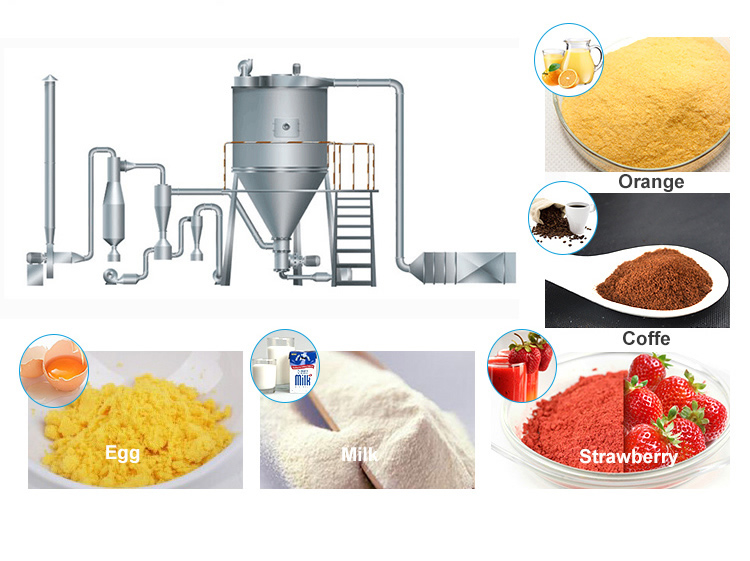

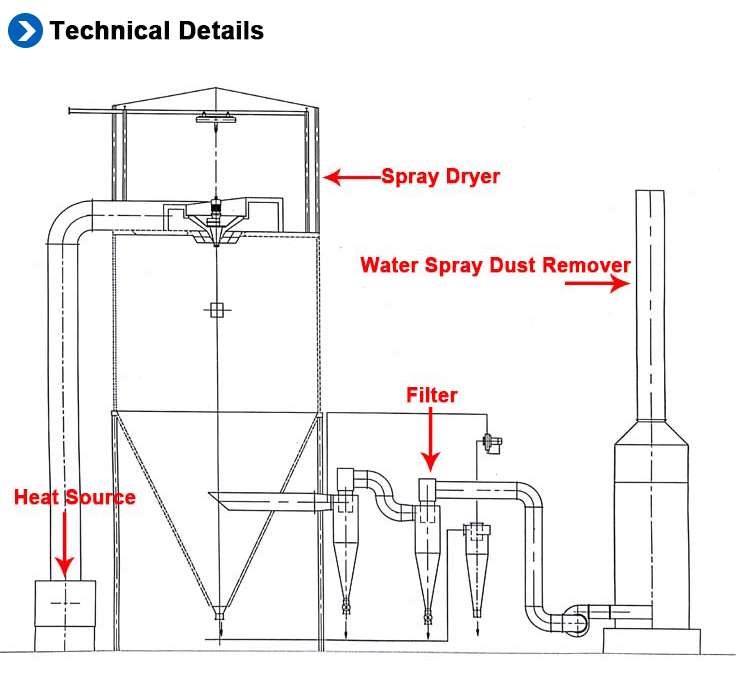

After filtering and heating the air enters into the air distributor at the top of the drier. The hot air enters into the drying chamber in the spiral spray at the top of the tower. The material liquid will rotate and be sprayed into liquid beads. Through the very short time of contacting the heat air, the materials can be dried into the finished products. The finished products will continuously output through the bottom of dryer and separator. The waste gas will be discharged from blower.



Dimension / Model 5 25 50 150 200-2000
Inlet Temperature °C 140-350 automatic control
Outlet Temperature °C 80-90
Max. Evaporation Capacity (kg/h) 5 25 50 150 200-2000
Atomizing Method compressed air drive mechanical drive
Revolution (r.p.m) 25000 18000 18000 15000 8000-15000
Revolution (r.p.m)
Diameter of Atomizing Disc (mm)
50 120 120 150 180-240
Heat Source electricity steam+electricity steam+electricity, oil, oil fuel, hot air furnace
Max. Heating Power (kw) 9 36 72 99
Overall Dimensions(L×W×H)(m) 1.8×0.93×2.2 3×2.7×4.26 3.5×3.5×4.8 5.5×4×7 depends on actual situation
Dried Powder Restoring Rate (%) ≥95
